SU-27 MODIFIED TO SU-37

I decided to make a model out of a plan. I wanted an ultrasmall, and a jet. My inspiration comes from http://www.hobby-lobby.com/shockflyer-su27.htm , from http://www.foamyfactory.com/jets.htm and http://www.rcgroups.com/gallery/ .

I used the foam I bought at Staples

I modified the plans and cut the parts out

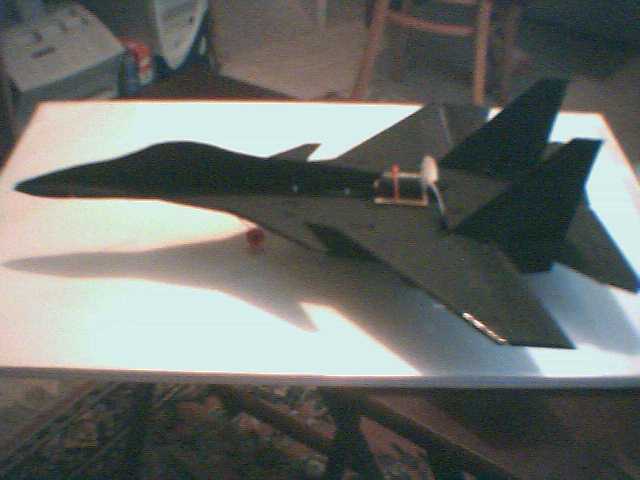

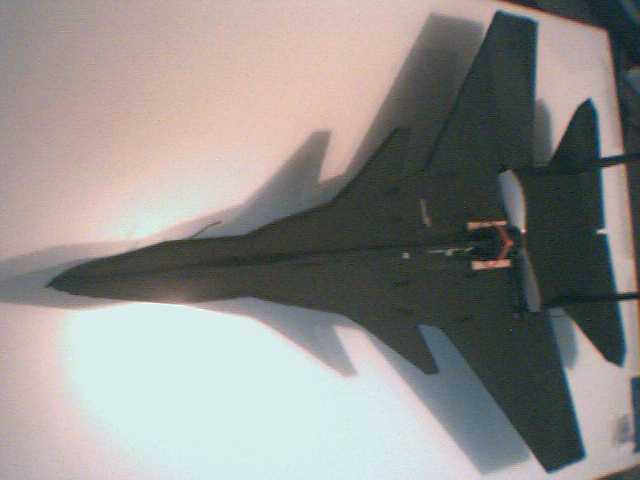

The results:

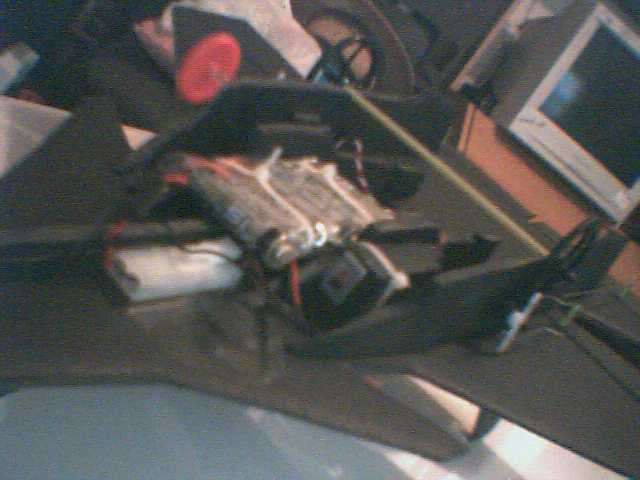

Note: links to elevator and flaps should both push and pull in the same direction. The photo is wrong, corrections have been made. The plane will not respond to the stick going up and down if you regard the main wing as an standard wing. It is a delta wing. The elevator works as an extension of the delta wing. see video http://www.hobby-lobby.com/shockflyer-su27.htm

I am mixing elevator and ailerons. I decided to put wheels (I like to take off and land).

Specs:

bullet 16-1/2" wingspan, 23-1/2" long, 170 sq. in. approx.

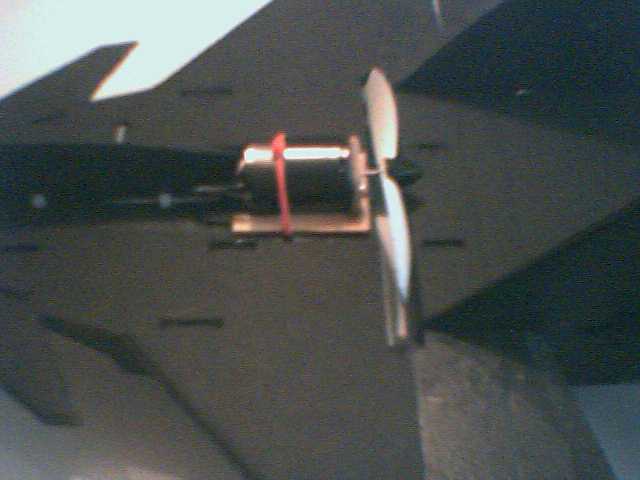

bullet Engine 400.
bullet Weight loaded: 330 grams.
bullet Wing area 11 dm˛.
bulletWing load: 30grams per dm˛.
bulletTrust with NiMH 8 AAA cells, 9.6v, 800 miliamps: 130grams.
bulletPropeller GWS EP5043.
bulletTheoretical speeds: Stall 9 Km/h, Cruise 28 Km/h.

Plane has not been flown as of July 10, 2005.

PLANE DOES NOT FLY! TOO HEAVY

I decided to make a larger version. Check it out.
